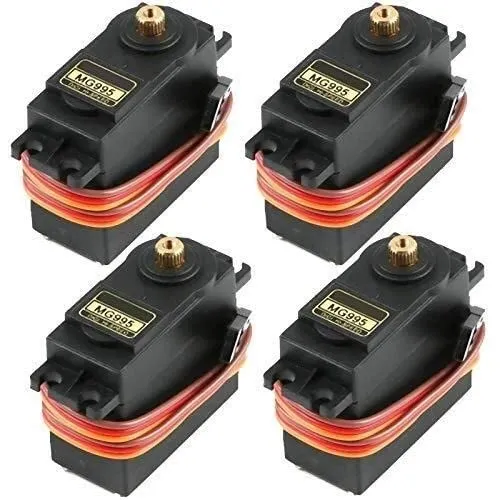

.Specification:

Operating Speed: 0.17sec / 60 degrees (4.8V no load)

Operating Speed: 0.13sec / 60 degrees (6.0V no load)

Stall torque: 12kg/cm(6V), 13kg/cm(7.2V)

Operation Voltage: 3.0V - 7.2V

Gear : All Metal Gears

Dead Band Width: 4us

Plug Specification: JR and so on

Temperature range: -30 - 60deg

Servo Weight: 55g

Control Specifications:

Control Method: PWM

Pulse Width: 500-2500

Duty Ratio: 0.5ms-2.5ms

Pulse Period: 20ms

Connection:

Red Wire:

Yellow Wire: PWM/Signal

Brown Wire: GND

Gear : All Metal Gears

Power Supply: Through External

Stable and Shock

Compliant with most standard receiver : , Hitec, Sanwa, GWS etc

Great Compatible with biped robot / robot / remote control car, suitable Compatible with models of 50-90 methanol fixed-wing aircraft and 26cc-50cc gasoline fixed-wing aircraft

colour:black

Material:plastic

size:54*38*20mm

Wire Length 300mm/11.8 inch

Package Contents:

4 * Servo

4 * Servo Horn Kit

Note:

Please make sure that the duty cycle of the controller you are using conform to our specifications, otherwise the servo can't turn up to claimed degree.

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.

• Package Dimensions ‏ : ‎ 1.18 x 0.79 x 0.39 inches; 1.76 ounces
• Department ‏ : ‎ Unisex Adult
• Date First Available ‏ : ‎ May 24, 2024
• Manufacturer ‏ : ‎ ZHUAKNS
• Country of Origin ‏ : ‎ China
