- [Powerful Motor Limite] Suitable for a series of battery types and engine sizes for various RC
- [Handy package] comes with glue stickers, cable tires and a user manual for simple installation
- [Reliable battery] Compatible with 4-9 NIMH batteries and 2-3S Li Ionbatteries
- [Efficient BEC output] offers 5.85V 3A -output for reliable food
- [Sustainable construction] Inventory/Share fan included for use with 2S and 3S Lipo batteries
1. Water and dust : the RC car brushless ESC Emercial - and dust - performance, suitable for all RC racing competitions of the weather; Before use in water, first remove the cooling fan
2. Programming port: equipped with external programming port, it is easy to connect to the program card when setting ESC; Compatible with different brushless servo, designed for entry level and intermediate players
3. Multiple protections: the RC -electronic speed controller has a low voltage cut, overheating Guard, throttle loss of signal loss protector and motor locking guard to it and reliable, with lasting performance
4. Reliable performance: proportional braking, with a maximum braking force adjustment of 4 levels and a drag throne of 8 levels; 9 step acceleration adjustment to adapt to different types of vehicles, tires and traces
5. Wide application: The 60A RC Brushless ESC is suitable for 1/10 short distance trucks, four -wheel vehicles, etc.; Built -in switch mode BEC, Maximum output 6amp, voltage 6V, making it compatible with different servo system
Specifications:

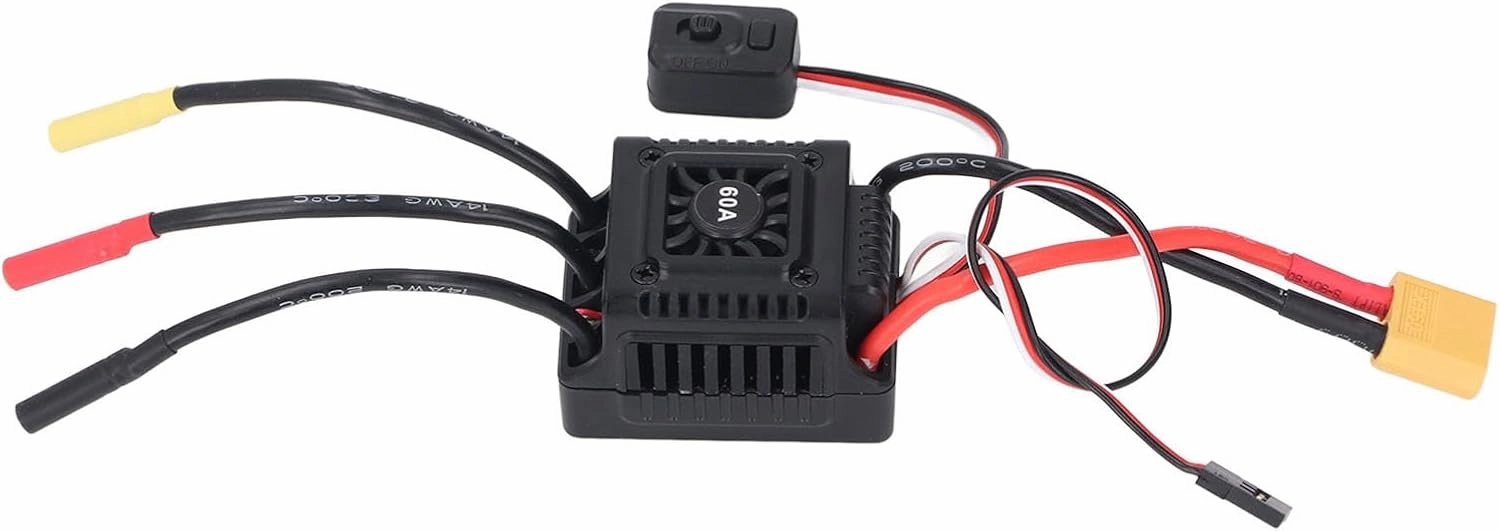

Article type: rc -car brushless ESC
Continu Current: FWD. 60a, . 60A
current: fwd. 180a, . 180a
Resistance value: 0.001Ω
Applicable model: 1:10 on the road, off -road, buggy
Battery: 4-9 NIMH battery, 2-3S Li ion battery
Motor limit:
For 2S Lipo or 6 Cell NIMH battery:
On the way: 3656 size or smaller engine, off road buggy: 3656 or size for 3s lipo or 9 cell nimh -battery:
On the road: 3656 size or smaller engine, off road buggy: 3656 or size Bec Output: 5.85V 3A
Cool fan:
Directly from the battery, no adjustment required
Inventory/Share fan can be linked to 2S and 3S Lipo
How to use:
Follow the instructions in the manual
Package list:
1 x RC Auto ESC
2 x glue stickers
2 x cable sheets
1 x user manual
Notification:
1. Reminder: compatible with optional devices, portable digital LED programming card, especially suitable for outdoor use.2. Remove the cooling fan before using it in water; Clean and dry as soon as possible after use to prevent connectorosion.
