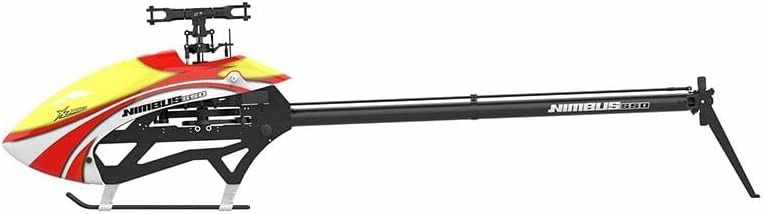

- High Power Extreme Preformance 3D Heli! The Nimbus 550 V2 is a versatile RC helicopter designed for performance and easy setup. Featuring full-size servo mounts and a highly visible pre-painted canopy, it’s built for minimal maintenance and quick assembly.
- Upgrades include an advanced swash plate for improved control, a rigid 7075 aluminum frame for durability, and a redesigned lower frame that accommodates an 8S battery for longer flights. With a updated WC tail design and hidden tail servo, it promises enhanced tail performance and reliability in extreme conditions.
- The airframe is designed for easy assembly and minimal maintenance, making it perfect for pilots who prioritize flight time. It features full-size servo mounts (with options for mini servos), a highly visible pre-painted canopy, and a single-piece 7075 aluminum bearing block assembly for added rigidity.
- The cyclic servos are arranged in a 120-degree layout for optimal control, and the redesigned lower frame allows for an 8S battery setup. It also includes a WC tail, hidden tail servo, and built-in wire guides for better organization.
- The Nimbus 550 V2's swash plate has been upgraded to eliminate unequal cyclic and collective differential, resulting in smoother and more balanced flight control.
- Longer outer swash plate balls improve the connection between the servos and the swash plate, enhancing responsiveness and maintaining a proven control ratio for precise and stable performance.
- The servo setup has been enhanced with a 120-degree cyclic servo layout, which optimizes control geometry for better precision. Combined with the 7075 aluminum servo mount, this provides more accurate flight dynamics and ensures reliability under demanding conditions.
*** Features:
- WC Tail and Hidden Tail Servo
- Single-piece 7075 aluminum bearing block and servo mount
- 120 Degree servo arangement
- Included Motor bearing block and metal servo horn
- Dual one way bearing main hub
- Discrete Wire guides
*** Specifications:
Size: 550
Main Gear: 106T
Tail Pully: 13T
Autorotation Pully: 60T
Gear Ratio: 9.63
Weight: 55oz (1560g)
Battery Tray Size: 11.4x2.1x2.5in (290x53.5x66mm)
Battery: 6-12S
Power Source: Electric
*** Includes:
(1) Nimbus 550 V2 Electric Helicopter Kit
Product Manual
*** Needed To Complete:
(1) Flybarless control system with built-in and/or external receiver
(1) Full-range 6 channel helicopter compatible transmitter
(3) cyclic servos
(1) tail servo
(2) 550mm main blades
(2) 95mm tail blades
(1) 6-12S and helicopter compatible ESC
(1) 4020-4025 size 1200Kv Brushless Motor
(1) 6-12S 22.2-44.4V LiPo battery
(1) Compatible LiPo Charger
*** Electronics Suggest To Build:
- TORQ BLS2208 Full Size HV Brushless Servo
- TORQ CL1208 Mini HV Coreless Servo
- TORQ CL1208-Black Edition Mini HV Coreless Servo
- TORQ BLS1809M Mini HV Brushless Servo
- TORQ BLS2208-Black Edition Full Size HV Brushless Servo
- TORQ BLS0704T Full Size HV Brushless Rudder Helicopter Servo
- TORQ BLS0704T-Black Edition Full Size HV Brushless Rudder Servo
- Egodrift Tengu 4025EC Eclipse / 1080kV (6x32)
- HBW Platinum 150A V5.1 ESC (3-8S)
- XDFly HPro 155A 3-8S SBEC ESC for RC Helicopter 550-580 Class
- Scorpion Tribunus III 06-160A ESC SBEC
- iKON 2 HD Flybarless System
- iKON 2 Flybarless System w/o Bluetooth (Micro USB Cable Not Included)
- Pulse 5100mah 80C 22.2V 6S P-Tech Lipo Battery - EC5 Connector
- PULSE 5300mAh 50C 22.2V 6S P-Tech LiPo Battery - EC5 Connector
- PULSE 5600mah 80C 22.2V 6S P-Tech LiPo Battery - EC5 Connector
- Azure Power 560mm Heli Main Blades
- RotorTech 560mm Ultimate Flybarless Main Blade Set
- VULCAN ROTORS Precision Main Rotor Blades 563mm
- Azure Power 95mm Heli Tail Blades
- RotorTech 96mm Ultimate Tail Rotor Blade Set
- VULCAN ROTORS Precision Tail Rotor Blades 95mm
